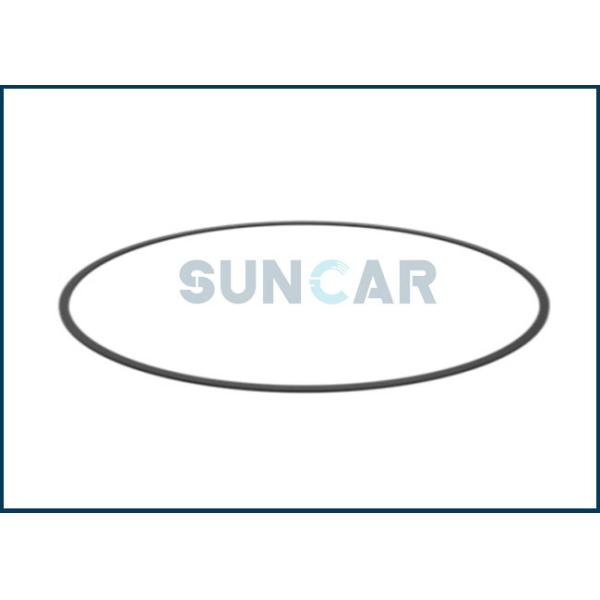

CA4J9218 4J-9218 4J9218 Back-up Ring fits C-A-T Bulldozer Wheel Loader

Name: CA4J9218 4J9218 4J9218 Backup Ring fits CAT Bulldozer Wheel Loader
Brand: SUNCAR
Price: 1 USD

Brand Name : SUNCAR

Model Number : CA4J9218 4J-9218 4J9218 back up ring

CertifiC-A-Tion : ISO9001

Place of Origin : CN

MOQ : Accept trial order

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 550 Pcs Per Week.

Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)

Packaging Details : PP Bag Inside,Carton Box Outside.

Color : Standard color

Style : C-A-T Seal ring

Key words : Hydraulic ring,back up ring

Features : High temperature resistance, the working temperature can reach 250℃. Low temperature resistance, good mechanical toughness at low temperature, even if the temperature drops to -196 ℃, it can maintain 5% elongation.

Hardness : 90 degrees

Material : Polyurethane rubber

Fits equipment : Wheel-type loader;Off-highway truck;Excavator;Track-type tractor;Load, haul, dump

Type : Back up ring

AppliC-A-Tion : Hydraulic pump,valves,engine systems

Contact Now

CA4J9218 4J-9218 4J9218 Back-up Ring fits C-A-T Bulldozer Wheel Loader

Description:

Support ring

The support ring can prevent the seal from squeezing under high pressure appliC-A-Tions, and can also be used to protect the life of the overall sealing system under sudden pressure changes.

Characteristic:

The C-A-T® backing ring is designed in combination with the characteristics of elastic seals and mating parts, which greatly helps to ensure the life and performance of the sealing system under high pressure appliC-A-Tions.

The size of the support ring strictly adheres to the tightness tolerance, which can ensure that they properly bridge the sealing groove and the mating surface together. When selecting materials, the decision will be made based on their pressure resistance and wear resistance.

The support ring can be a closed ring or a split ring. The split ring is used to ensure easy assembly.

The C-A-T sealing system prevents leakage and contamination of more expensive parts. Protect your investment with original C-A-T seals.

AppliC-A-Tion:

Support rings are used for high-pressure static and dynamic sealing appliC-A-Tions, such as hydraulic pumps, valves and engine systems

Products Details :

Product name	CA4J9218 4J-9218 4J9218 Back-up Ring fits C-A-T Bulldozer Wheel Loader
Brand	SUNCAR
Material	Polyurethane rubber
Hardness	90 degree
Place original	Guangzhou,China
Loading port	Huangpu port,China
Features	Wide range use,seal oil performance;high temp. resistance/low temp. resistance
Payment	L/C, D/A, D/P, T/T, Western Union,
AppliC-A-Tion	Wheel-type loader;Off-highway truck;Excavator;Track-type tractor;Load, haul, dump
Style	Seal ring
Medium	hydraulic oil, flame retardant liquid, water and others
Type	Hydraulic seal ring
Fit equipment	C-A-T;Wheel-type loader;Off-highway truck;Wheel dozer;Wheel tractor-scraper;Track-type tractor
Size	Standard size

Compatible Models:

Bulldozer	10S
Excavator	235C
Hydraulic Control	184
Load Haul Dump	R1300 R1300g R1300g Ii R1600
Quarry Truck	771C 771D
Track-type Tractor	D10 D11N
Truck	69D 769 769C 769D 770G 770G Oem 772G 772G Oem 795F Ac 795F XQ 797 797B 797F
Wheel Loader	950B 950B/950E 950F 950F II 950G 950G II 960F 962G 962G II 966D 966F 966F II 970F 980C 980F 980F II 992C 992

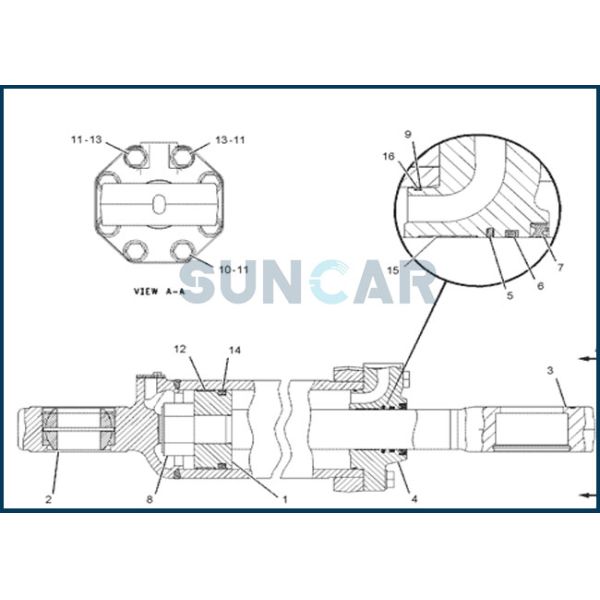

Relatice Parts:

Pos.	Part No	Qty	Parts name
1	6E-1440	[1]	PISTON
2	194-6172	[1]	CYLINDER AS
	194-6174	[1]	CAP AS
	197-9121	[1]	BEARING-SELF-ALIGNING
	109-0119	[1]	RING-RETAINING
3	194-6175	[1]	ROD AS
4	194-6177	[1]	HEAD
5	311-9316 J	[1]	SEAL AS-BUFFER
6	439-2695 J	[1]	SEAL-U-CUP
7	311-9318 J	[1]	SEAL-WIPER
8	3J-9449	[1]	LOCKNUT (2-1/2-12-THD)
9	4J-9218 J	[1]	RING-BACKUP
10	173-9779 M	[6]	BOLT (M24X3X80-MM)
11	6V-8237	[8]	WASHER (26X44X4-MM THK)
12	8M-4228 J	[1]	RING-WEAR
13	8T-0668 M	[2]	BOLT (M24X3X110-MM)
14	8T-1789 J	[1]	SEAL AS
15	8T-3329 J	[1]	RING-WEAR
16	9F-1399 J	[1]	SEAL-O-RING

			AVAILABLE REPAIR KIT(S):
	235-0974 J	[1]	KIT-SEAL (HYDRAULIC CYLINDER)
			(INCLUDES RINGS & SEALS)
			(FOR USE WITH REHS1392)
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
